Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the necessary specifications. A robust and stable foundation is vital, not only for the effective operation of the hoist but also for the safety of your vehicles and anyone using the equipment. Adequate preparation and strict adherence to guidelines can greatly enhance both the performance and longevity of the hoist, ensuring it operates safely and efficiently in your garage environment.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, significantly reducing the risk of cracking or sinking over time. For more robust hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), to ensure maximum performance and safety during operation.

Step-by-Step Guide to Determining the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a pivotal element in the safe installation and operation of a car hoist. Several critical factors must be assessed when determining the appropriate depth for your slab, ensuring it can effectively manage the loads it will endure during use. A clear understanding of these factors can help prevent expensive mistakes and significantly enhance the safety of your garage setup, allowing you to maintain peace of mind while using your car hoist.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, it is imperative to comprehend the total weight that your concrete floor must support. This assessment involves not only the weight of the vehicle but also the weight of the hoist itself, which can contribute a substantial load to the floor. Understanding the total weight is crucial for ensuring that your installation is safe and effective.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may add an additional 500 to 1,000 kg. Moreover, it is prudent to account for extra weight as a safety buffer to ensure the structure can handle unexpected circumstances without compromising integrity. This comprehensive approach to load capacity safeguards against potential failures.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan on lifting significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation. Always engage with a structural engineer to receive expert advice tailored to your specific situation and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Needs

It is crucial to recognise that different types of car hoists have unique requirements regarding concrete thickness. Two-post lifts and four-post lifts are two of the most popular options among homeowners seeking to install a car hoist in their garages. Understanding the specific needs of each type is essential for a successful installation.

Two-post lifts exert pressure on specific points of the concrete slab, necessitating a thicker concrete slab, often around 150 mm or more, to accommodate the concentrated load effectively. This design allows for optimal stability and safety, especially when lifting heavier vehicles.

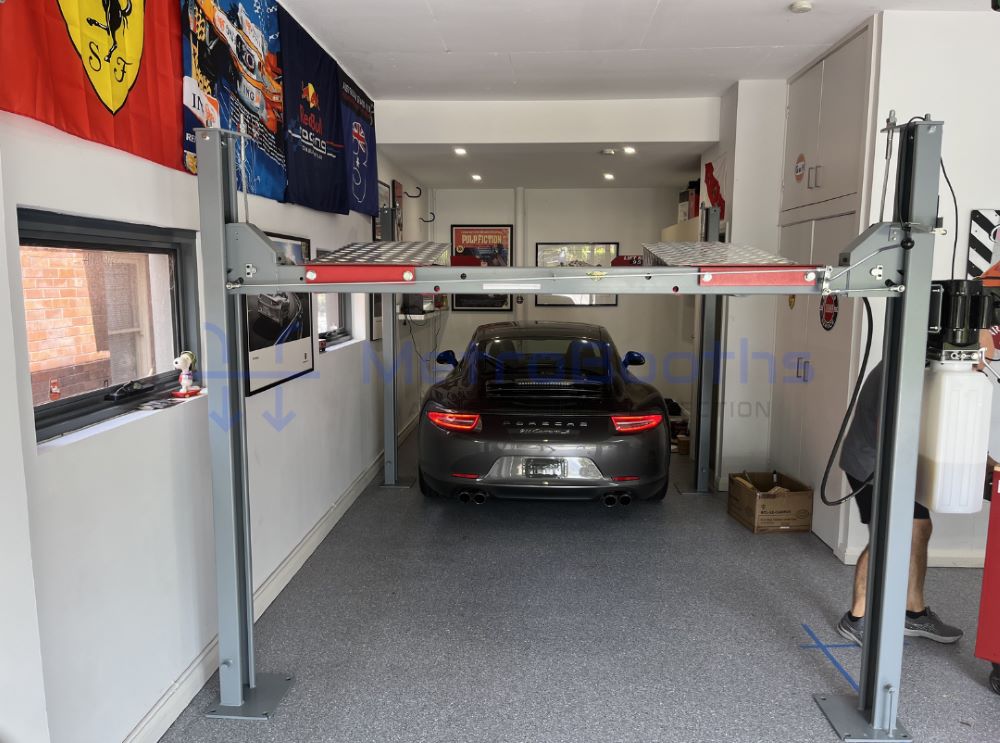

In contrast, four-post lifts distribute weight more evenly over a larger area, enabling them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge is vital for your planning and installation process, ensuring you choose the right type of hoist for your garage environment.

Always consult the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for achieving optimal performance and longevity from your equipment. Remember, these recommendations are broad guidelines; your specific needs may differ based on your garage configuration and the types of vehicles you intend to lift.

Recognising the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is as significant as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads. This consideration becomes particularly relevant in the context of a car hoist installation, where safety and stability are paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting. This ensures that your installation can withstand the rigours of regular use without compromising safety.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The inclusion of steel mesh or rebar can greatly improve the overall strength of your concrete floor, enabling you to utilise a thinner slab while still effectively supporting heavy loads during operation. This approach not only saves material costs but also enhances the safety of your installation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it a sensible choice for budget-conscious homeowners. If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can aid in mitigating the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Critical Installation Factors for Ensuring Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring your garage remains a safe working environment.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use. This foundational work is critical for the longevity of your hoist.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This attention to detail can prevent future complications.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition. This proactive approach can save you significant trouble down the line.

Crucial Ongoing Maintenance Post Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep a vigilant eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality of your hoist. Maintaining the integrity of the concrete is key to ensuring the safety of your operations.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to significant structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thus extending its lifespan. This simple step can provide substantial benefits in the long run.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This straightforward maintenance step can prevent costly repairs and ensure safe usage. Consider implementing a routine maintenance schedule for your hoist to ensure it remains in optimal condition.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Queries Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing clarity to help you make informed decisions.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation. Adhering to these guidelines helps ensure optimal performance.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety during use.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, ensuring that your hoist functions correctly.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, so always consult a professional for tailored advice.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety for all operations.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, ultimately protecting your investment.
